Rotary - All Options %Show(MFT-2000 + MFT-2000A + MFT-5000)%

Drive Installation

Required Tools and Components

Components:

XY Stage with Direct Drive Motor

Rotary Drive

(Option) Rotary Liquid Container

Liquid Chamber Housing
Liquid Chamber
Liquid Chamber Cover

Screws and Hardware:

(1x) Alignment Screw

(1x) Sample Screw, BM312-241-04

Allen wrenches: 9/64”, 3/32”

(Option) (6x) Liquid Chamber Housing Screws, BM310-240-03

(Option )(6x) Liquid Chamber Cover Screws, BM310-220-04

Your Drive

Inline Rotary Drive

In certain configurations—particularly when there are requirements for speed and/or torque—a module with an integrated motor has been recommended.

The difference, therefore, is that to change modules (from reciprocating to rotary, for example), it is necessary to uninstall the module with it motor from the stage.

Open the upper back door of the MFT-5000.

Insert the motor drive on the stage.

Secure it with 6 x 8-32 x .375” BM310280-05 9/64

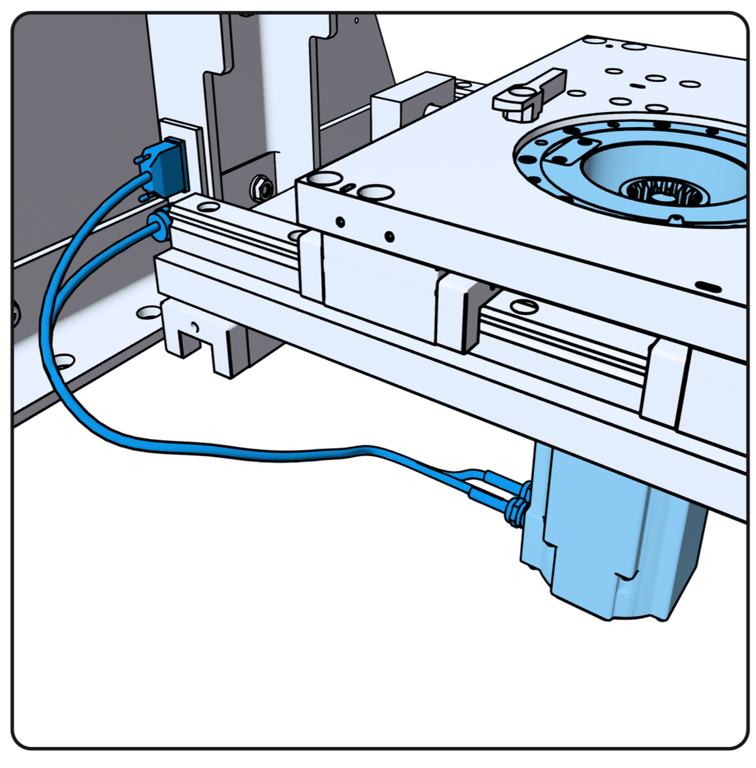

Connect the 2 cables on the slot behind the right frame.

Direct Rotary Drive

Direct Rotary Drive Installation Step

Please skip this step if your drive is already installed onto the XY stage.

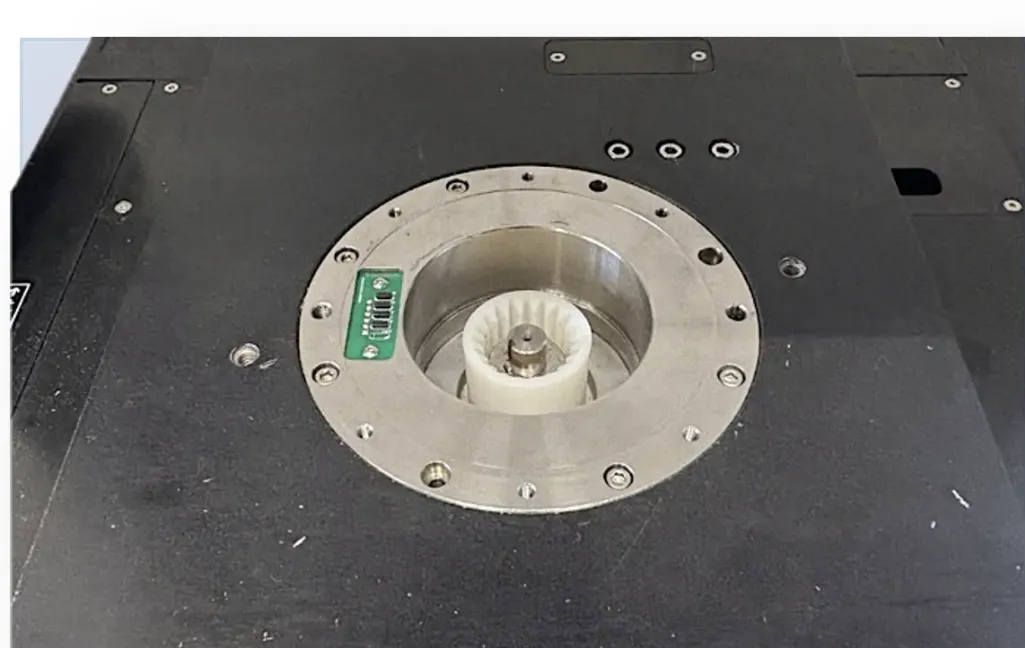

As shown above, the drive is installed on the stage.

Route the drive cable through the X Y stage.

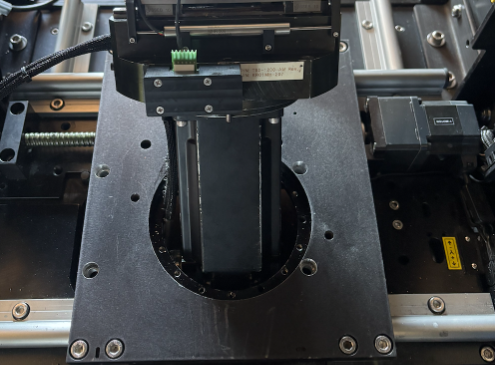

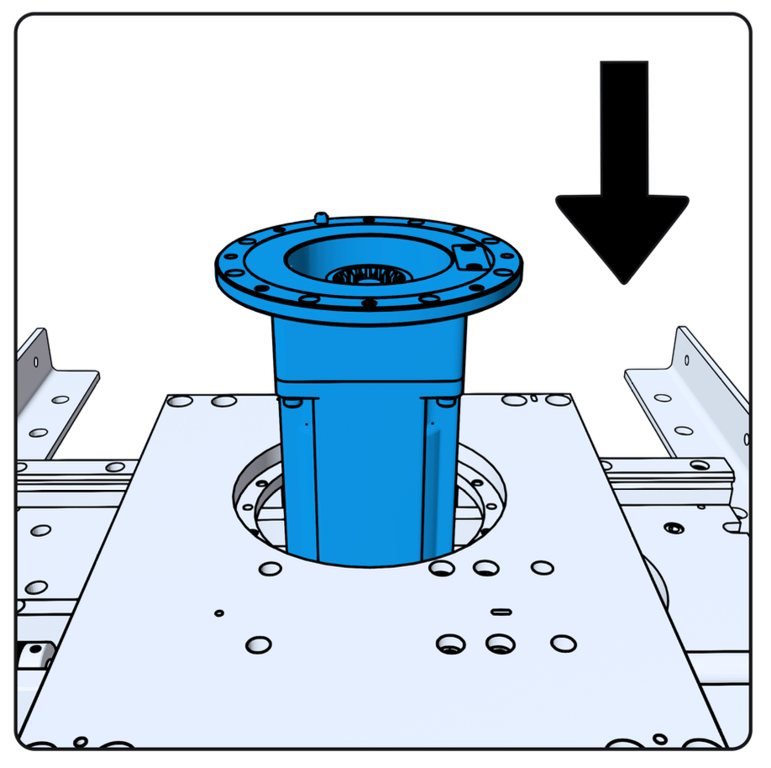

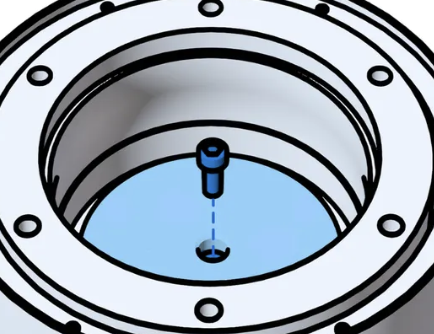

Position and insert the motor drive through the stage.

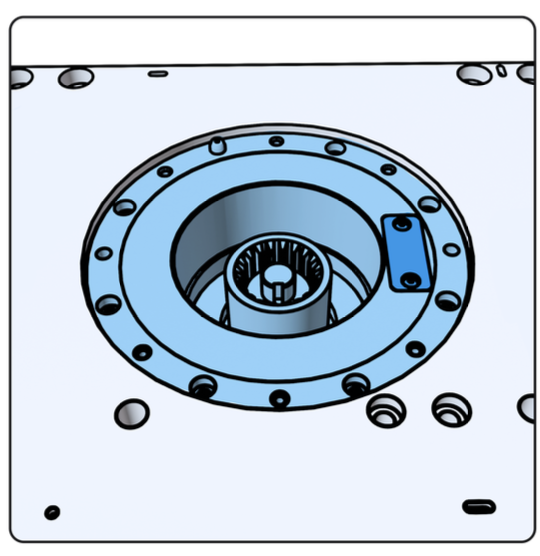

Orient the drive so the green sensor port faces the right side.

Secure the drive with 7 x SHCS 8-32 X .625" long screws
(310-280-05 / BM310280-09)

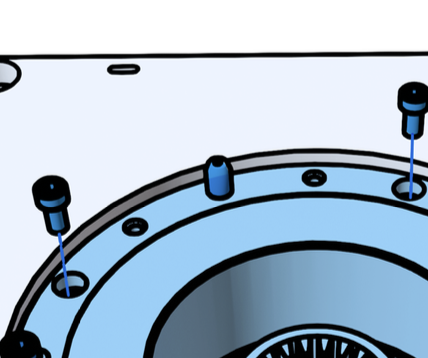

Confirm that the alignment pin is seated correctly.

Connect the 2 cables on the slot on the right, behind the frame (the Motor Power Chord and the Encoder Chord).

⚠️

Always power off the instrument before connecting cables or installing any
load cell or accessory.

Install the Rotary Drive

Technical Rotary Drive Specifications:

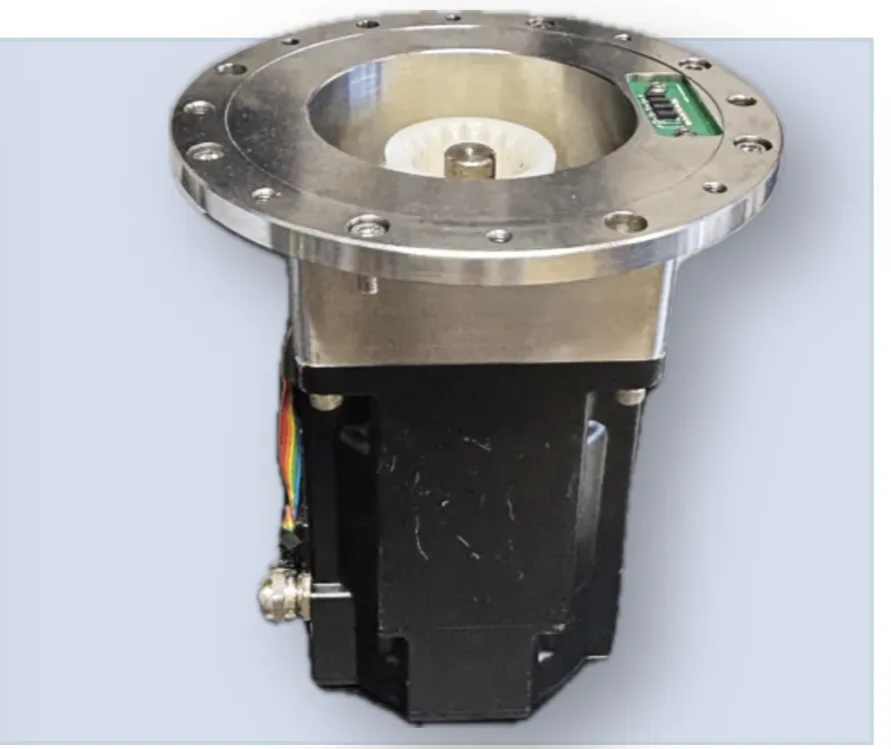

Direct Rotary Drive (Fast-Exchange)

SPN	Description	Specifications
SPN04322	Standard Rotary Drive Motor #E	0.1 to 6,000 rpm; >5.1 Nm @ 100 rpm, 4.5 Nm @ 500 rpm; 3.7 Nm @ 3000 rpm; 2.9 Nm @ 5000 rpm; 2.5 Nm @ 6000 rpm.

All Belt-Driven

SPN	Motor/Driver	Description	Specifications
SPN04002-1-1200	Motor #1	Low Torque Rotary Drive - Motor #1	Max Speed 12,000 rpm; Max Torque 2.3 Nm 2.25 Nm @500 rpm, 2.1 Nm @ 3000 rpm, 1.8 Nm @ 6000 rpm, 1.2 Nm @ 12000 rpm
SPN04002-1-800	Motor #1	Low Torque Rotary Drive - Motor #1	Max Speed 8,000 rpm; Max Torque 3.4Nm 3.4 Nm @500 rpm, 2.9 Nm @ 3000 rpm, 1.85 Nm @ 8000 rpm
SPN04002-1-500	Motor #1	Low Torque Rotary Drive - Motor #1	Max Speed 5,000 rpm; Max Torque 5.5 Nm 5.3 Nm @500 rpm, 4.1 Nm @ 3000 rpm, 3 Nm @ 5000 rpm
SPN04002-1-300	Motor #1	Low Torque Rotary Drive - Motor #1	Max Speed 3,000 rpm; Max Torque 9.2 Nm 8.6 Nm @500 rpm, 7.3 Nm @ 1500 rpm, 4.9 Nm @ 3000 rpm
SPN04010	Motor #1	Standard Rotary Drive Motor #1	Max Speed 5,000 rpm; Max Torque 5.6 Nm 5.3 Nm @500 rpm, 4.1 Nm @ 3000 rpm, 3 Nm @ 5000 rpm
SPN04002-2-8000	Motor #2	High Torque Rotary Drive-Motor #2 (30%+ higher torque than Motor #1)	Max Speed 8,000 rpm; Max Torque 4.2 Nm 4.1 Nm @500 rpm, 3.8 Nm @ 3000 rpm, 2.9 Nm @ 8000 rpm
SPN04002-2-5000	Motor #2	High Torque Rotary Drive-Motor #2 (30%+ higher torque than Motor #1)	Max Speed 5,000 rpm; Max Torque 6.8 Nm 6.6 Nm @500 rpm, 5.6 Nm @ 3000 rpm, 4.6 Nm @ 5000 rpm
SPN04002-2-3000	Motor #2	High Torque Rotary Drive-Motor #2 (30%+ higher torque than Motor #1)	Speed 0.1 to 3,000 rpm; Max Torque：10 Nm 10Nm @500rpm, 9.2Nm @1500rpm, 7.4Nm @3000rpm
SPN04018	Motor #2	Rotary Drive High Torque-Motor #2 (~30% Higher Torque than motor #1)	Contact Us for More Ranges on Speed and Torque
SPN04002-3-7500	Motor #3	High Torque Rotary Drive-Motor #3 (30%+ higher torque than Motor #2)	Max Speed 7500 rpm; Max Torque 5.6 Nm 5.6 Nm @500 rpm, 5.1 Nm @ 3000 rpm, 3.9 Nm @ 7500 rpm
SPN04002-3-6000	Motor #3	High Torque Rotary Drive-Motor #3 (30%+ higher torque than Motor #2)	Max Speed 6000 rpm; Max Torque 7.1 Nm 6.9 Nm @500 rpm, 6.2 Nm @ 3000 rpm, 4.9 Nm @ 6000 rpm
SPN04002-3-3000	Motor #3	High Torque Rotary Drive-Motor #3 (30%+ higher torque than Motor #2)	Max Speed 3000 rpm; Max Torque 14.2 Nm 13.6 Nm @500 rpm, 12.4 Nm @ 1500 rpm, 9.7 Nm @ 3000 rpm
SPN04002-3-1900	Motor #3	High Torque Rotary Drive-Motor #3 (30%+ higher torque than Motor #2)	Max Speed 1900 rpm; Max Torque 22.7 Nm 21.3 Nm @500 rpm, 19.8 Nm @ 1000 rpm, 15.5 Nm @ 1900 rpm
SPN04026	Motor #3	Rotary Drive High Torque-Motor #3 (~70% Higher Torque than Motor #1)	Needed for few applications requiring very high torque. Contact Us for More Ranges
SPN04002-4-100	Motor #4	Ultra-Low Speed Rotary Drive - Harmonic Reducer (Precise control on rotation angle, 5 times higher torque than motor #1)	Speed 0.001 to 100 rpm; Max Torque 50 Nm, angular resolution 0.0072 deg.
SPN04002-4-50	Motor #4	Ultra-Low Speed Rotary Drive - Harmonic Reducer (Precise control on rotation angle, 5 times higher torque than motor #1)	Speed 0.001 to 50 rpm; Max Torque 50 Nm, angular resolution 0.0036 deg.
SPN04034	Motor #4	Rotary Drive Ultra-Low Speed Harmonic Actuator	Precise control on rotation angle. Speed 0.001 to 100 rpm, Max Torque 50 Nm, angular resolution 0.0072 degree
SPN04002-5-5000	Motor #5	Ultra-High Torque Rotary Drives (Require 3-phase 480V or 380V AC Power, 5 times higher torque than motor #1). Additional high power controller needed. Not all temperature chambers fit. Please contact for compatibility	Speed 0.1 to 5,000 rpm; Max Torque 30 Nm
SPN04002-5-3000	Motor #5	Ultra-High Torque Rotary Drives (Require 3-phase 480V or 380V AC Power, 5 times higher torque than motor #1). Additional high power controller needed. Not all temperature chambers fit. Please contact for compatibility	Speed 0.1 to 3,000 rpm; Max Torque 50 Nm
SPN04010-15	Motor #1 Driver #B	Electric Drive Rotary Drive	max 3000 rpm, @220V, T max 9.5 Nm
SPN04010-14	Motor #1 Driver #B	Electric Drive Rotary Drive	max 5000 rpm, @220V, Tmax 5.6 Nm
SPN04010-18	Motor #1 Driver #B	Electric Drive Rotary Drive	max 8000 rpm, @220V, Tmax 3.5 Nm
SPN04330-474	Motor #1 Driver #B	Electric Drive Rotary Drive	max 3000 rpm, @220V, T max 9.5 Nm
SPN04330-475	Motor #1 Driver #B	Electric Drive Rotary Drive	max 5000 rpm, @220V, Tmax 5.6 Nm
SPN04330-476	Motor #1 Driver #B	Electric Drive Rotary Drive	max 8000 rpm, @220V, Tmax 3.5 Nm
SPN04018-21	Motor #2 Driver #B	Rotary Drive	max 3000 rpm, @220V, T max 10.5 Nm
SPN04018-20	Motor #2 Driver #B	Rotary Drive	max 5000 rpm, @220V, T max 6.9 Nm
SPN04026-93	Motor #3 Driver #B	Rotary Drive	max 1500 rpm, @220V, T max 22.7 Nm
SPN04026-92	Motor #3 Driver #B	Rotary Drive	max 3000 rpm, @220V, T max 11.5 Nm
SPN04292-487	Motor #2 Driver #C	Rotary Drive	max 4800 rpm, @380V / 4800 RPM @ 480V, T max 10.8 Nm
SPN04292-488	Motor #2 Driver #C	Rotary Drive	max 7500 rpm, @380V / 7500 RPM @ 480V, T max 6.9 Nm
SPN04291-485	Motor #3 Driver #C	Rotary Drive	max 2500 rpm, @380V / 3000 RPM @480V, T max 22.7 Nm
SPN04291-486	Motor #3 Driver #C	Rotary Drive	max 5000 rpm, @380V / 6000 RPM @480V, T max 11.5 Nm
AM000030-01	Motor #4 Driver #D	Rotary Drive Ultra-High Torque (Up To 50 Nm, 3 Phase 480V Requirement)	4300 rpm, SPN04290-24
AM000030-02	Motor #4 Driver #D	Rotary Drive Ultra-High Torque (Up To 50 Nm, 3 Phase 480V Requirement)	3000 rpm, SPN04290-25

More Torque and Speed Characteristics

MOTOR #1 at 220v With Drive mod. AKD-01206

Motor#1	ㅤ	SPN04010-15 SPN04330-474	SPN04010-15 SPN04330-474	SPN04010-14, SPN04330-475	SPN04010-14, SPN04330-475	SPN04010-18, SPN04330-476	SPN04010-18, SPN04330-476
1	ㅤ	2	(48:24)	1.2	(36:30)	0.75	(30:40)
Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm
100	5.10	0	9.46	0	5.68	0	3.55
200	4.67	100	9.34	167	5.60	267	3.50
500	4.58	250	9.16	417	5.50	667	3.44
1000	4.42	500	8.84	833	5.30	1333	3.32
1200	4.36	600	8.72	1000	5.23	1600	3.27
1500	4.27	750	8.54	1250	5.12	2000	3.20
2000	4.11	1000	8.22	1667	4.93	2667	3.08
2500	3.93	1250	7.86	2083	4.72	3333	2.95
3000	3.75	1500	7.5	2500	4.50	4000	2.81
3500	3.57	1750	7.14	2917	4.28	4667	2.68
3800	3.46	1900	6.92	3167	4.15	5067	2.60
4000	3.38	2000	6.76	3333	4.06	5333	2.54
4500	3.17	2250	6.34	3750	3.80	6000	2.38
5000	2.95	2500	5.9	4167	3.54	6667	2.21
5500	2.74	2750	5.48	4583	3.29	7333	2.06
6000	2.53	3000	5.06	5000	3.04	8000	1.90

MOTOR #2 @ 220v Drive #B

Motor#2	Motor#2	SPN04018-21	SPN04018-21	SPN04018-20	SPN04018-20
ㅤ	ㅤ	1.25	(45:36)	0.8	(36:45)
Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm
0	8.67	0	10.84	0	6.94
200	8.56	160	10.70	250	6.85
500	8.39	400	10.49	625	6.71
1000	8.11	800	10.14	1250	6.49
1200	8	960	10.00	1500	6.40
1500	7.83	1200	9.79	1875	6.26
2000	7.56	1600	9.45	2500	6.05
2500	7.2	2000	9.00	3125	5.76
3000	6.85	2400	8.56	3750	5.48
3500	6.37	2800	7.96	4375	5.10
3800	6.08	3040	7.60	4750	4.86
4000	5.89	3200	7.36	5000	4.71

MOTOR #3 @220v Drive #B

Single Motor	Single Motor	SPN04026-93	SPN04026-93	SPN04026-92	SPN04026-92
ㅤ	ㅤ	2	(48:24)	1	(45:45)
Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm
0	11.6	0	23.20	0	11.6
200	11.43	100	22.86	200	11.43
500	11.23	250	22.46	500	11.23
1000	10.89	500	21.78	1000	10.89
1200	10.75	600	21.50	1200	10.75
1500	10.55	750	21.10	1500	10.55
2000	10.08	1000	20.16	2000	10.08
2500	9.59	1250	19.18	2500	9.59
3000	8.9	1500	17.80	3000	8.9

MOTOR #4 @480V 3 Phase Motor Drive #D

at 3-ph. 480V - With Drive mod. AKD-02407
Motor #4 (AKM2G-74Q) - standard motor high-power rotary drive, brake tester, twin-roller tester, 3-roller tester.

Motor #4	Motor #4	SPN04290-24 (Brake tester)	SPN04290-24 (Brake tester)	SPN04290-25 (Brake tester)	SPN04290-25 (Brake tester)
ㅤ	ㅤ	0.625	(35:56)	0.875	(35:40)
Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm
0	59.59	0	37.24	0	52.14
100	59.59	160	37.24	114	52.14
200	59.59	320	37.24	229	52.14
500	59.57	800	37.23	571	52.12
750	59.55	1200	37.22	857	52.11
1000	59.54	1600	37.21	1143	52.10
1200	59	1920	36.88	1371	51.63
1250	58.45	2000	36.53	1429	51.14
1400	56.6	2240	35.38	1600	49.53
1500	55.35	2400	34.59	1714	48.43
1750	52.3	2800	32.69	2000	45.76
2000	49.3	3200	30.81	2286	43.14
2250	46.3	3600	28.94	2571	40.51
2500	43.1	4000	26.94	2857	37.71
2700	40.7	4320	25.44	3086	35.61

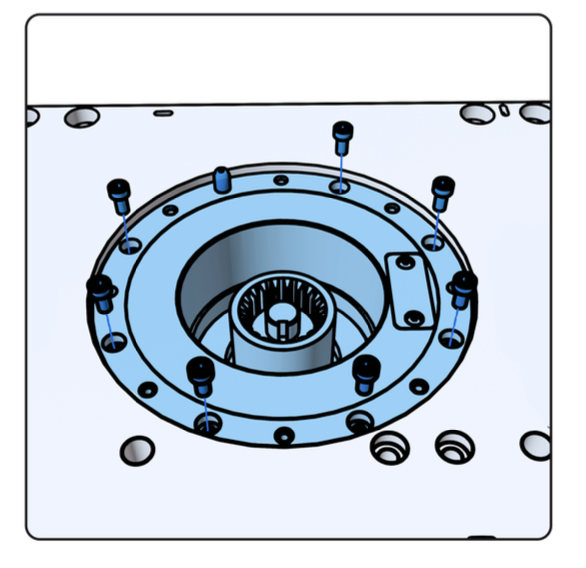

Align the rotary drive with the mounting holes.

⚠️

Ensure that the black connector underneath the module is facing left so it properly aligns and connects with the green connector on the base.

Secure using 6 x 8-32 screws (Part No. BM310280-5) with 9/64" Allen key.

Overview → Rotary Ambient Dry Test

The Rotary drive is used across a wide range of tests, used as a base module to complete several other modules

The drive is mounted on the XY stage using the fast exchange drive. The tribometer allows to run both rotary drive and XY stage at same time which can be programmed independently. Various rotary drives torque and speed ratings allows it to cover wide range of test conditions.

Typically the sample is mounted on the rotary drive using standard universal disk holder.

*Rotary Drive assembled for a dry ambient test*

5. Disk Test Sample

4. Universal Sample Holder
Can accommodate any rotary sample.

Sample Radius range : [12.7 , 50.8] mm / [0.5 , 2]”
Ref: T02-2400-AM - SPN03L002

3. Rotary Table
Enable container and sample holders installation.

2. Rotary Drive Module
Enable chamber and housing installation:
Heating, Cooling, Humidity…

Vmax 6000 rpm, Tmax 5.1 Nm

@ Velocity (Rpm)	Torque (Nm)
100	>5.1
500	4.5
3000	3.7
5000 rpm	2.9
6000	2.5

1. Fast Exchange Drive onto the XY Table
Enable quick exchange between various module using one direct drive.

Ref: AM001122-00

Rotary applications type

Dry Ambient Test → Sample mounting

Direct Sample Disk Mounting

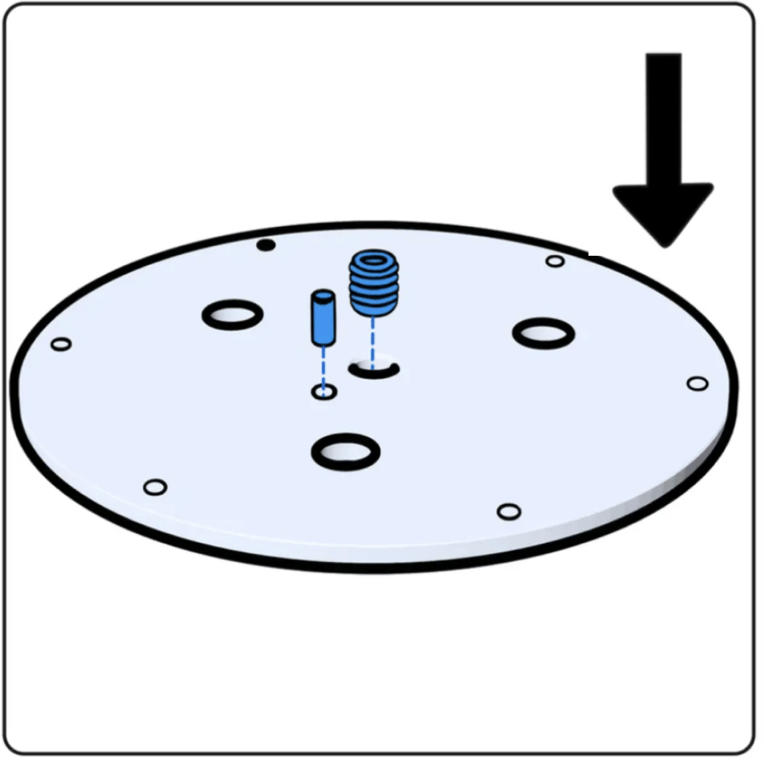

Ensure the thread adapter and the centering pin are mounted onto the rotary table disk. Dowel pins are in the tool hardware kit.
Pin: 0.094” x 0.375” dowel pin - BM280103-04. Thread adapter - BM430001.

The Sample Disk should be aligned with the dowel pin to avoid any disk
wobbling during test.

Disk mounted on rotary table by aligning with Dowel Pin and tightening
the center 6/32 sample disk screw with the 5/32" Allen key.

You can mount the sample disk directly onto the rotary table if this option was not purchased or if your sample has been properly prepared for this purpose.

This universal rotary holder can accommodate any rotary sample of radius within this range without the need for a centered insert on the sample.

Range of [12.7 , 50.8] mm / [0.5 , 2]”

Mount the Universal Sample holder onto the rotary table.

Secure it with the 6, 4-40 X .250" using a 3/32" Allen key.
Sample holder screw provided in the toolbox.
4-40 X .250" LG PLAIN 18-8 SST SHCS screws

Place the sample in the middle of the holder.
Use the centering lines to grossly center

Securing the sample disk

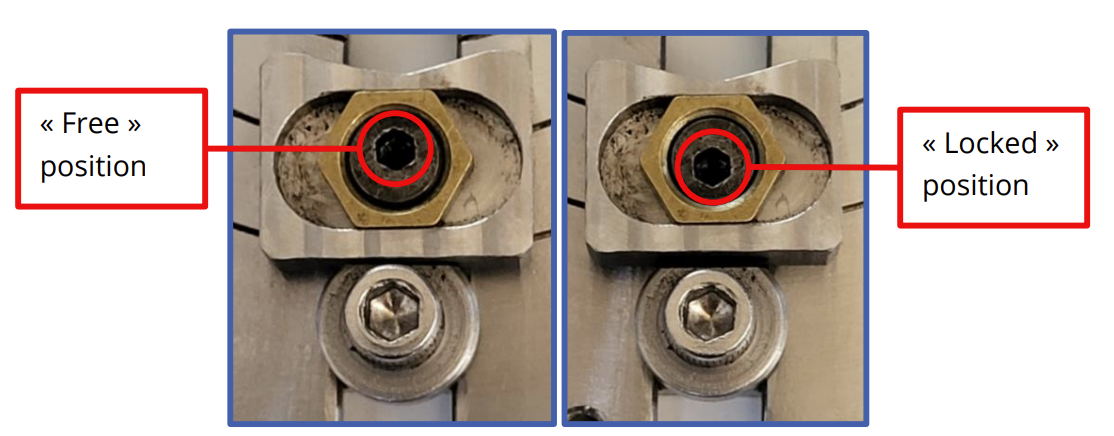

Loosen the 3 gripper's screws

2. Place the fine securing screw in the “Free Position”:

Slide the 3 grippers in contact with the sample.

Once the sample is positioned, tighten the 3 gripper's screws.

Finally, tighten the fine screw until it is pushing the sample, preventing any rotation during the test.

Hardware Steps Completed → Software Steps

Click here to access corresponding software steps

You are ready to perform the test under the specific conditions.

Liquid Ambient Test

Remove the Rotary Table

Using a 9/64" Allen key, remove the existing sample holder disk to prepare for the chamber installation.

Remove the thread adapter with a flat screwdriver.
Turn it counterclockwise like a screw to remove it.

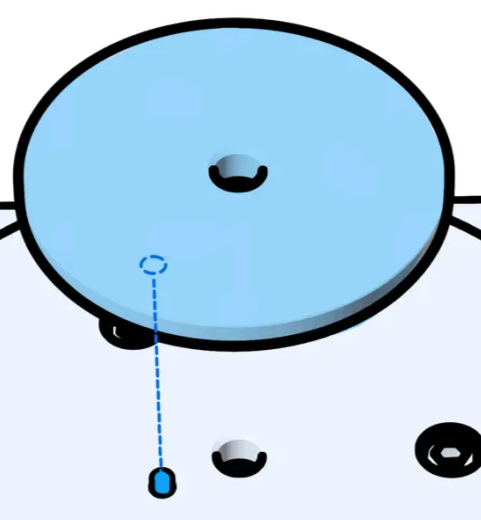

Remove also the pin from the rotary table disk.
From the other side of the disk, push the pin out using a 0.050" Allen key.

The pin is a 0.094” x 0.375” dowel pin, part number BM280103-04.
The thread adapter is part number BM430001.

Install the Chamber Housing

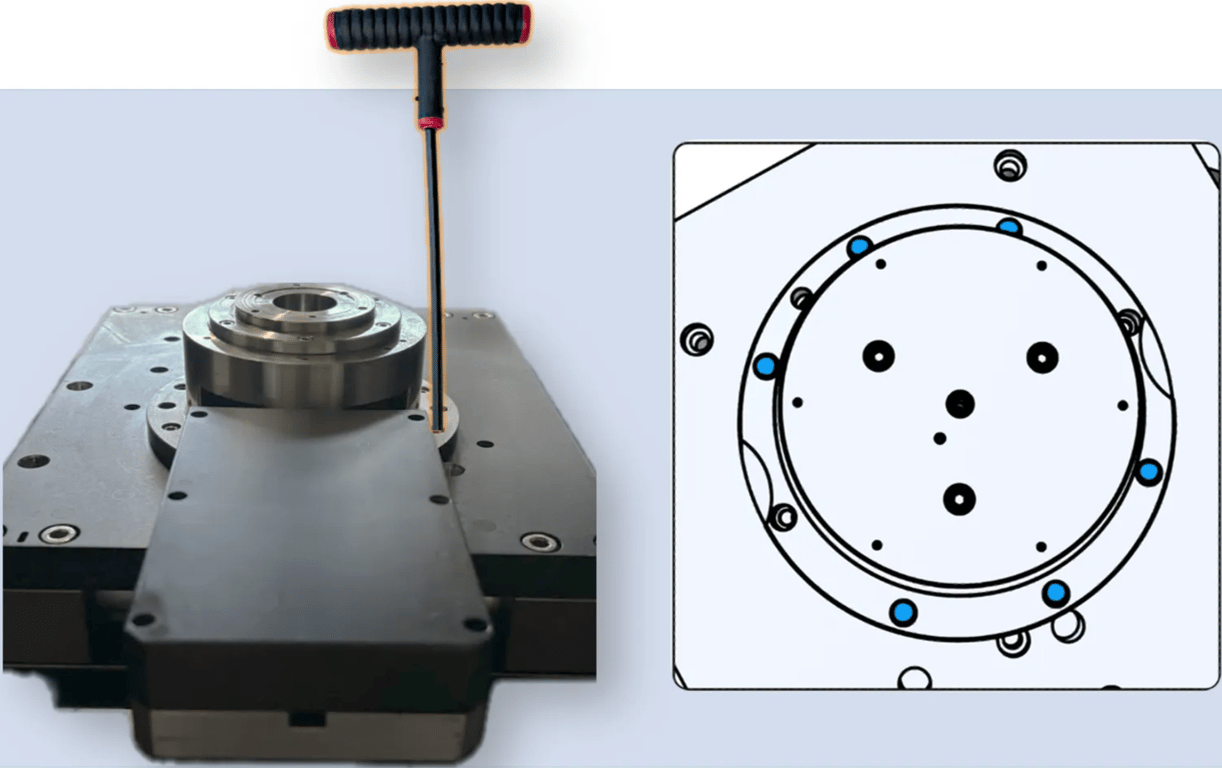

Position the chamber housing onto the rotary drive with the two dowel pins positioned along the Y-Axis.

Secure the housing using six 4-40 X .250” screws using a 3/32" Allen key.
SHCS 4-40 X .250" LG PLAIN 18-8 SST SHCSBM310240-03

Re-Mount the Rotary Table

Insert a long 1⁄4-20 bolt in the center of the rotary table to help lower and
position the table into the liquid container housing.

Once seated, remove the temporary screw and re-screw the three rotary
table screws with the 9/64" Allen key.

Mount the Liquid Chamber

Place the liquid chamber onto the housing.

Secure it by tightening the six captive screws with the 3/32" Allen key.

Sample Mounting

Align the sample with the pin and place it in the liquid chamber.

Use the BM312-241-04 screw and 3/32" Allen key to secure the sample in position.

The Universal sample holder which can accommodate any circular sample is not compatible with the liquid container.

Chamber Cover Installation

Install the brass cover with the opening along the Y-axis. The two slots in the brass lid will align with the two dowl pins on the housing.
Align the cover with the two dowel pins on the liquid chamber.

Screw in the six Liquid Chamber Cover Screws - BM310-220-04 to secure the lid to the housing.

Hardware Steps Completed → Software Steps

You are ready to perform the test under the specific conditions.

Troubleshooting

Maintenance

Humidity Test

Hardware Steps Completed → Software Steps

You are ready to perform the test under the specific conditions.

Troubleshooting

Maintenance

Heated Test

500° Heating Rotary

Dry Test

Remove the Rotary Table

Using a 9/64" Allen key, remove the existing sample holder disk to prepare for the chamber installation.

Remove the thread adapter with a flat screwdriver.
Turn it counterclockwise like a screw to remove it.

Remove also the pin from the rotary table disk.
From the other side of the disk, push the pin out using a 0.050" Allen key.

The pin is a 0.094” x 0.375” dowel pin, part number BM280103-04.
The thread adapter is part number BM430001.

Mount the Lower Extension

Align the lower extension with its mounting position.

Secure it using three 8-32 screws (BM310280-4) and a 9/64" Allen key.

A circular object with screws AI-generated content may be incorrect.

Mount the 500°C Chamber

Position the chamber on the extension. The fans facing towards the front.

Insert two 4-40 screws (BM310240-3) into the front and back holes.

Tighten using a 3/32" Allen key.

A close-up of a circular object AI-generated content may be incorrect.

Re-Mount the Rotary Table

Insert a long ¼-20 bolt in the center of the rotary table to help lower and position the table into the chamber.

Place the rotary table inside the chamber.

Once seated, remove the temporary screw and re-screw the three rotary table screws with the 9/64" Allen key.

A circular object with blue screws AI-generated content may be incorrect.

Mount the Universal Sample holder

Direct Sample Disk Mounting

The Sample Disk should be aligned with the dowel pin to avoid any disk
wobbling during test.

Disk mounted on rotary table by aligning with Dowel Pin and tightening
the center 6/32 sample disk screw with the 5/32" Allen key.

Place the sample disk on the holder.

Fasten with one 4-40 screw using a 5/32" Allen key.

A blue circle with black arrow pointing at the center AI-generated content may be incorrect.

You can mount the sample disk directly onto the rotary table if this option was not purchased or if your sample has been properly prepared for this purpose.

This universal rotary holder can accommodate any rotary sample of radius within this range without the need for a centered insert on the sample.

Range of [12.7 , 50.8] mm / [0.5 , 2]”

Mount the Universal Sample holder onto the rotary table.

Secure it with the 6, 4-40 X .250" using a 3/32" Allen key.
Sample holder screw provided in the toolbox.
4-40 X .250" LG PLAIN 18-8 SST SHCS screws

Place the sample in the middle of the holder.
Use the centering lines to grossly center it

Securing the sample disk

Loosen the 3 gripper's screws and the fine securing screw so that there is a slightly gap enabling the final securing position.

Slide the 3 grippers in contact with the sample.

Once the sample is positioned, tighten the 3 gripper's screws.

Finally, tighten the fine screw until it is pushing the sample, preventing any rotation during the test.

Secure the Top Cover

Place the cover on the chamber.

Tighten the cap using the four built-in thumb screws.

A blue and white machine AI-generated content may be incorrect.

A white machine with blue screws AI-generated content may be incorrect.

Connect the Temperature Cable

Plug in the temperature cable and thermocouple to the chamber.

Plug in the other side of the temperature cable and thermocouple to the tester.

Secure the Top Cover

Place both covers on the chamber.

Secure them using the two built-in thumb screws.

Connect the Temperature Cable

Plug in the temperature cable and thermocouple to the chamber.

Plug in the other side of the temperature cable and thermocouple to the tester.

Hardware Steps Completed → Software Steps

You are ready to perform the test under the specific conditions.

Troubleshooting

Maintenance

Liquid Test

Ici présentation de la partie: ne concerne que ceux qui ont acheté le 500°C et le liquid container, pour réaliser des tests avec une grande quantité de liquid à temperature >ambiente.

Remove the Rotary Table

Using a 9/64" Allen key, remove the existing sample holder disk to prepare for the chamber installation.

Remove the thread adapter with a flat screwdriver.
Turn it counterclockwise like a screw to remove it.

Remove also the pin from the rotary table disk.
From the other side of the disk, push the pin out using a 0.050" Allen key.

The pin is a 0.094” x 0.375” dowel pin, part number BM280103-04.
The thread adapter is part number BM430001.

Mount the Lower Extension

Align the lower extension with its mounting position.

Secure it using three 8-32 screws (BM310280-4) and a 9/64" Allen key.

Mount the 500°C Chamber

Position the chamber on the extension. The fans facing towards the front.

Insert two 4-40 screws (BM310240-3) into the front and back holes.

Tighten using a 3/32" Allen key.

Re-Mount the Rotary Table

Insert a long ¼-20 bolt in the center of the rotary table to help lower and position the table into the chamber.

Place the rotary table inside the chamber.

Once seated, remove the temporary screw and re-screw the three rotary table screws with the 9/64" Allen key.

Mount the Liquid Chamber

If available, place the liquid chamber onto the housing.

Secure it by tightening the six captive screws with the 3/32" Allen key.

Align the cover with the two dowel pins on the heating chamber.

Install the brass cover with the opening along the Y-axis. The two slots in the brass lid will align with the two dowl pins on the housing

In this case, the brass cover is positioned with no screws.

Sample Mounting

The Sample Disk should be aligned with the dowel pin to avoid any disk
wobbling during test.

Disk mounted on rotary table by aligning with Dowel Pin and tightening
the center 6/32 sample disk screw with the 5/32" Allen key.

Place the sample disk on the holder.

Fasten with one 4-40 screw using a 5/32" Allen key.

Secure the Top Cover

Place the cover on the chamber.

Tighten the cap using the four built-in thumb screws.

Connect the Temperature Cable

Plug in the temperature cable and thermocouple to the chamber.

Plug in the other side of the temperature cable and thermocouple to the tester.

Hardware Steps Completed → Software Steps

You are ready to perform the test under the specific conditions.

Troubleshooting

Maintenance

1000° Heating Rotary

Remove the Rotary Table

Using a 9/64" Allen key, remove the existing sample holder disk to prepare for the chamber installation.

Remove the thread adapter with a flat screwdriver.
Turn it counterclockwise like a screw to remove it.

Remove also the pin from the rotary table disk.
From the other side of the disk, push the pin out using a 0.050" Allen key.

The pin is a 0.094” x 0.375” dowel pin, part number BM280103-04.
The thread adapter is part number BM430001.

Mount the Shrink Fin

Position the shrink fin in place.

Secure with two BM310220-8 screws and a 5/64" Allen key.

A blue and black machine AI-generated content may be incorrect.

A close-up of a machine AI-generated content may be incorrect.

Install Rotary Extension Blocks

Position the lower extension block and secure using BM310280-4 screws and a 9/64" Allen key.

A drawing of a circular object AI-generated content may be incorrect.

Install the lower part of the chamber

Position the chamber, the fans facing the front.

Use the two thumbscrews on both sides to tighten and secure the chamber.

Install the upper extension block on top of the chamber using BM310280-4 screws and a 9/64" Allen key.

Install Sample Holder Assembly

Position the sample holder in place by aligning the two pin mounts.

⚠️

Apply a thin layer of anti-seize compound to the contact surfaces between the sample holder and the lower table.

Place the sample disc in the sample holder.

Secure the disc using BM310282-7 screws and a 3/32” Allen Key.

⚠️

Apply a thin layer of anti-seize compound to each screws prior to mount to prevent sticking at high temperatures.

A blue circle on a white machine AI-generated content may be incorrect.

A drawing of a blue object AI-generated content may be incorrect.

Close and Lock the Lid

Close the chamber lid.

Engage the two locking clamps located on both sides of the chamber.

A computer generated machine with blueprints AI-generated content may be incorrect.

Connect the Temperature Cable %Hide (MFT-2000)%

Plug in the temperature cable and thermocouple to the chamber.

Plug in the other side of the temperature cable and thermocouple to the tester.

Hardware Steps Completed → Software Steps

You are ready to perform the test under the specific conditions.

Troubleshooting

Maintenance

Cooled Test

-120° Cryogenic Rotary

Liquid Nitrogen Dewar Installation

pump manual 900-V9.pdf

1.4 MB

Remove the Rotary Table

Using a 9/64" Allen key, remove the existing sample holder disk to prepare for the chamber installation.

Remove the thread adapter with a flat screwdriver.
Turn it counterclockwise like a screw to remove it.

Remove also the pin from the rotary table disk.
From the other side of the disk, push the pin out using a 0.050" Allen key.

The pin is a 0.094” x 0.375” dowel pin, part number BM280103-04.
The thread adapter is part number BM430001.

Mount the Lower Extension

Align the lower extension with its mounting position.

Secure it using three 8-32 screws (BM310280-4) and a 9/64" Allen key.

Mount the -120°C Chamber

Place the chamber over the extension shaft.

Use a 3/16" Allen key to tighten the screw at the bottom to prevent rotation.

Install the Rotary Plate

Place the Rotary plate into the chamber.

Secure using 8-32 screws (BM310280-4) and 9/64” Allen Key.

Mount the liquid nitrogen Chamber

The liquid nitrogen chamber comes with pre-installed screws.

Use a 3/32" Allen key to tighten the BM310-240-3 screws.

Mount the Sample

Place the sample in the designated holder.

Tighten using the sample screw and 5/64" Allen key.

Install the Top Cover

Place the top cover over the chamber assembly.

Hand-tighten the four top cover screws.

Additional Connections

Liquid Nitrogen Inlet: Connect the LN2 tube to the port marked for liquid nitrogen.

RTD Port: Connect the low temperature RTD (Resistance temperature detectors) to the designated input.

Hardware Steps Completed → Software Steps

You are ready to perform the test under the specific conditions.

Troubleshooting

Maintenance

Contact & Support

For technical support or further assistance, please contact:

Rtec-Instruments Support

support@rtec-instruments.com

+1 (408) 708-9226

www.rtec-instruments.com

Manual Versions

Manual Version	Date	Update Description
ㅤ	ㅤ	Initial Manual Version

Rotary - All Options %Show(MFT-2000 + MFT-2000A + MFT-5000)%

Drive Installation

Required Tools and Components

Components:

Screws and Hardware:

Direct Rotary Drive

Inline Rotary Drive

Your Drive

Inline Rotary Drive

Direct Rotary Drive

Direct Rotary Drive Installation Step

Install the Rotary Drive

Technical Rotary Drive Specifications:

Direct Rotary Drive (Fast-Exchange)

All Belt-Driven

More Torque and Speed Characteristics

MOTOR #1 at 220v With Drive mod. AKD-01206

MOTOR #2 @ 220v Drive #B

MOTOR #3 @220v Drive #B

MOTOR #4 @480V 3 Phase Motor Drive #D

Overview → Rotary Ambient Dry Test

The Rotary drive is used across a wide range of tests, used as a base module to complete several other modules

5. Disk Test Sample

4. Universal Sample Holder Can accommodate any rotary sample.

3. Rotary TableEnable container and sample holders installation.

2. Rotary Drive ModuleEnable chamber and housing installation:Heating, Cooling, Humidity…

1. Fast Exchange Drive onto the XY TableEnable quick exchange between various module using one direct drive.

Rotary applications type

Dry Ambient Test → Sample mounting

Direct Sample Disk Mounting

Range of [12.7 , 50.8] mm / [0.5 , 2]”

Securing the sample disk

Hardware Steps Completed → Software Steps

Liquid Ambient Test

Remove the Rotary Table

Install the Chamber Housing

Re-Mount the Rotary Table

Mount the Liquid Chamber

Sample Mounting

Chamber Cover Installation

Hardware Steps Completed → Software Steps

Troubleshooting

Maintenance

Humidity Test

Hardware Steps Completed → Software Steps

Troubleshooting

Maintenance

Heated Test

500° Heating Rotary

Dry Test

Remove the Rotary Table

Mount the Lower Extension

Mount the 500°C Chamber

Re-Mount the Rotary Table

Mount the Universal Sample holder

Direct Sample Disk Mounting

Range of [12.7 , 50.8] mm / [0.5 , 2]”

Securing the sample disk

Secure the Top Cover

Connect the Temperature Cable

Secure the Top Cover

Connect the Temperature Cable

Hardware Steps Completed → Software Steps

Troubleshooting

Maintenance

Liquid Test

Remove the Rotary Table

Mount the Lower Extension

Mount the 500°C Chamber

Re-Mount the Rotary Table

Mount the Liquid Chamber

Sample Mounting

Secure the Top Cover

Connect the Temperature Cable

Hardware Steps Completed → Software Steps

Troubleshooting

Maintenance

1000° Heating Rotary

Remove the Rotary Table

Mount the Shrink Fin

4. Universal Sample Holder
Can accommodate any rotary sample.

3. Rotary Table
Enable container and sample holders installation.

2. Rotary Drive Module
Enable chamber and housing installation:
Heating, Cooling, Humidity…

1. Fast Exchange Drive onto the XY Table
Enable quick exchange between various module using one direct drive.
