All Drive Specifications

Technical Rotary Drive Specifications:

Direct Rotary Drive (Fast-Exchange)

SPN	Description	Specifications
SPN04322	Standard Rotary Drive Motor #E	0.1 to 6,000 rpm; >5.1 Nm @ 100 rpm, 4.5 Nm @ 500 rpm; 3.7 Nm @ 3000 rpm; 2.9 Nm @ 5000 rpm; 2.5 Nm @ 6000 rpm.

All Belt-Driven

SPN	Motor/Driver	Description	Specifications
SPN04010	Motor #1	Standard Rotary Drive Motor #1	Max Speed 5,000 rpm; Max Torque 5.6 Nm 5.3 Nm @500 rpm, 4.1 Nm @ 3000 rpm, 3 Nm @ 5000 rpm
SPN04018	Motor #2	Rotary Drive High Torque-Motor #2 (~30% Higher Torque than motor #1)	Contact Us for More Ranges on Speed and Torque
SPN04026	Motor #3	Rotary Drive High Torque-Motor #3 (~70% Higher Torque than Motor #1)	Needed for few applications requiring very high torque. Contact Us for More Ranges
SPN04034	Motor #4	Rotary Drive Ultra-Low Speed Harmonic Actuator	Precise control on rotation angle. Speed 0.001 to 100 rpm, Max Torque 50 Nm, angular resolution 0.0072 degree
SPN04010-15	Motor #1 Driver #B	Electric Drive Rotary Drive	max 3000 rpm, @220V, T max 9.5 Nm
SPN04010-14	Motor #1 Driver #B	Electric Drive Rotary Drive	max 5000 rpm, @220V, Tmax 5.6 Nm
SPN04010-18	Motor #1 Driver #B	Electric Drive Rotary Drive	max 8000 rpm, @220V, Tmax 3.5 Nm
SPN04330-474	Motor #1 Driver #B	Electric Drive Rotary Drive	max 3000 rpm, @220V, T max 9.5 Nm
SPN04330-475	Motor #1 Driver #B	Electric Drive Rotary Drive	max 5000 rpm, @220V, Tmax 5.6 Nm
SPN04330-476	Motor #1 Driver #B	Electric Drive Rotary Drive	max 8000 rpm, @220V, Tmax 3.5 Nm
SPN04018-21	Motor #2 Driver #B	Rotary Drive	max 3000 rpm, @220V, T max 10.5 Nm
SPN04018-20	Motor #2 Driver #B	Rotary Drive	max 5000 rpm, @220V, T max 6.9 Nm
SPN04026-93	Motor #3 Driver #B	Rotary Drive	max 1500 rpm, @220V, T max 22.7 Nm
SPN04026-92	Motor #3 Driver #B	Rotary Drive	max 3000 rpm, @220V, T max 11.5 Nm
SPN04292-487	Motor #2 Driver #C	Rotary Drive	max 4800 rpm, @380V / 4800 RPM @ 480V, T max 10.8 Nm
SPN04292-488	Motor #2 Driver #C	Rotary Drive	max 7500 rpm, @380V / 7500 RPM @ 480V, T max 6.9 Nm
SPN04291-485	Motor #3 Driver #C	Rotary Drive	max 2500 rpm, @380V / 3000 RPM @480V, T max 22.7 Nm
SPN04291-486	Motor #3 Driver #C	Rotary Drive	max 5000 rpm, @380V / 6000 RPM @480V, T max 11.5 Nm
AM000030-01	Motor #4 Driver #D	Rotary Drive Ultra-High Torque (Up To 50 Nm, 3 Phase 480V Requirement)	4300 rpm, SPN04290-24
AM000030-02	Motor #4 Driver #D	Rotary Drive Ultra-High Torque (Up To 50 Nm, 3 Phase 480V Requirement)	3000 rpm, SPN04290-25

More Torque and Speed Characteristics

MOTOR #1 at 220v With Drive mod. AKD-01206.

Motor#1	ㅤ	SPN04010-15 SPN04330-474	SPN04010-15 SPN04330-474	SPN04010-14, SPN04330-475	SPN04010-14, SPN04330-475	SPN04010-18, SPN04330-476	SPN04010-18, SPN04330-476
1	ㅤ	2	(48:24)	1.2	(36:30)	0.75	(30:40)
Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm
100	5.10	0	9.46	0	5.68	0	3.55
200	4.67	100	9.34	167	5.60	267	3.50
500	4.58	250	9.16	417	5.50	667	3.44
1000	4.42	500	8.84	833	5.30	1333	3.32
1200	4.36	600	8.72	1000	5.23	1600	3.27
1500	4.27	750	8.54	1250	5.12	2000	3.20
2000	4.11	1000	8.22	1667	4.93	2667	3.08
2500	3.93	1250	7.86	2083	4.72	3333	2.95
3000	3.75	1500	7.5	2500	4.50	4000	2.81
3500	3.57	1750	7.14	2917	4.28	4667	2.68
3800	3.46	1900	6.92	3167	4.15	5067	2.60
4000	3.38	2000	6.76	3333	4.06	5333	2.54
4500	3.17	2250	6.34	3750	3.80	6000	2.38
5000	2.95	2500	5.9	4167	3.54	6667	2.21
5500	2.74	2750	5.48	4583	3.29	7333	2.06
6000	2.53	3000	5.06	5000	3.04	8000	1.90

MOTOR #2 @ 220v Drive #B

Motor#2	Motor#2	SPN04018-21	SPN04018-21	SPN04018-20	SPN04018-20
ㅤ	ㅤ	1.25	(45:36)	0.8	(36:45)
Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm
0	8.67	0	10.84	0	6.94
200	8.56	160	10.70	250	6.85
500	8.39	400	10.49	625	6.71
1000	8.11	800	10.14	1250	6.49
1200	8	960	10.00	1500	6.40
1500	7.83	1200	9.79	1875	6.26
2000	7.56	1600	9.45	2500	6.05
2500	7.2	2000	9.00	3125	5.76
3000	6.85	2400	8.56	3750	5.48
3500	6.37	2800	7.96	4375	5.10
3800	6.08	3040	7.60	4750	4.86
4000	5.89	3200	7.36	5000	4.71

MOTOR #3 @220v Drive #B

Single Motor	Single Motor	SPN04026-93	SPN04026-93	SPN04026-92	SPN04026-92
ㅤ	ㅤ	2	(48:24)	1	(45:45)
Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm
0	11.6	0	23.20	0	11.6
200	11.43	100	22.86	200	11.43
500	11.23	250	22.46	500	11.23
1000	10.89	500	21.78	1000	10.89
1200	10.75	600	21.50	1200	10.75
1500	10.55	750	21.10	1500	10.55
2000	10.08	1000	20.16	2000	10.08
2500	9.59	1250	19.18	2500	9.59
3000	8.9	1500	17.80	3000	8.9

MOTOR #4 @480V 3 Phase Motor Drive #D

at 3-ph. 480V - With Drive mod. AKD-02407
Motor #4 (AKM2G-74Q) - standard motor high-power rotary drive, brake tester, twin-roller tester, 3-roller tester.

Motor #4	Motor #4	SPN04290-24 (Brake tester)	SPN04290-24 (Brake tester)	SPN04290-25 (Brake tester)	SPN04290-25 (Brake tester)
ㅤ	ㅤ	0.625	(35:56)	0.875	(35:40)
Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm
0	59.59	0	37.24	0	52.14
100	59.59	160	37.24	114	52.14
200	59.59	320	37.24	229	52.14
500	59.57	800	37.23	571	52.12
750	59.55	1200	37.22	857	52.11
1000	59.54	1600	37.21	1143	52.10
1200	59	1920	36.88	1371	51.63
1250	58.45	2000	36.53	1429	51.14
1400	56.6	2240	35.38	1600	49.53
1500	55.35	2400	34.59	1714	48.43
1750	52.3	2800	32.69	2000	45.76
2000	49.3	3200	30.81	2286	43.14
2250	46.3	3600	28.94	2571	40.51
2500	43.1	4000	26.94	2857	37.71
2700	40.7	4320	25.44	3086	35.61

Technical Linear Drive Specification:

Proper alignment of the sample on the reciprocating holder helps maintain its rated life.

The load factor applied to any reciprocating system is still the main factor determining its rated life.

The reciprocating mechanism can withstand high loads when used within its designed operating conditions. However, the general mechanical principle described below cannot be avoided.

rated life: the total travel distance that 90% of linear guides can reach

X₀ → Maximum X Differential Position

The maximum offset of the load along the X-axis relative to the center of the drive.
This value accounts for the total stroke displacement.

Y₀ → Maximum Y Differential Position

The maximum offset of the load along the Y-axis relative to the center of the drive.

Load

It depends on the position of the applied force. Refer to the following document for guidance on determining the maximum allowable load per test.

For example, if the X.Position is 0 mm and the stroke is 10 mm, then X₀ = 5 mm.

You are welcome to use this sheet to estimate your reciprocating drive’s rated life

Rated Load & Rated Life Linear Bearings.xlsx

26.5 KiB

Based on the summarized parameters, including the X–Y alignment relative to the reciprocating center. Please refer to the maintenance section at the end of this manual for more information.

⚠️

This information and the maintenance assessment should be taken into consideration during high-load testing procedures.

Adjustable Stroke length: 0.1-30 mm

Frequency: 0.1-80 Hz ( 80 Hz @ 1 mm, 60 Hz @ 2 mm, 20 Hz @ 25 mm).

⚠️

The maximum allowable frequency is determined by the current stroke length. The respective limits must not be exceeded.

Some reciprocating drives are not fully covered by this specification, e.g., SPN04316 – up to 15 Hz. Please refer to your packaging list if unsure or unaware of this information, or contact Rtec Support for assistance.

(Option) LVDT Linear Encoder Range: 25.4 mm (+/- 12.7 mm); Resolution: 1 um

When using the reciprocating system in combination with the LVDT, the stroke length limitation becomes 25.4 mm. The stroke length cannot be accurately measured or guaranteed beyond this value.

All Models and SPN

SPN	Model Specifications
SPN04324	Fast reciprocating drive - Adjustable Stroke length: 0.1-30 mm; Frequency：0.1-80 Hz ( 80Hz @ 1mm, 60hz @ 2mm，40 Hz @ 13 mm ，20 Hz @ 25mm ，10Hz+ @ 30mm ) .
SPN04325	Fast reciprocating drive - Adjustable Stroke length: 0.1-30 mm; Frequency：0.1-80 Hz ( 80Hz @ 1mm, 60hz @ 2mm，40 Hz @ 13 mm ，20 Hz @ 25mm ，10Hz+ @ 30mm, ) With LVDT Linear Encoder Range: 25.4 mm (+/- 12.7 mm); Resolution: 1 um

Technical BOR Drive Specification:

Speed and Torque: Belt Drive Motor #2 @ 220v With Driver #B

Single Motor #2	Single Motor #2	SPN04043-402 SPN04042-26	SPN04043-402 SPN04042-26	SPN04042-27 SPN04043-468	SPN04042-27 SPN04043-468
		1.25	(45:36)	0.667	(30:45)
Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm	Speed, rpm	Torque, Nm
0	8.67	0	10.84	0	5.78
200	8.56	160	10.70	300	5.71
500	8.39	400	10.49	750	5.59
1000	8.11	800	10.14	1500	5.41
1200	8	960	10.00	1800	5.33
1500	7.83	1200	9.79	2250	5.22
2000	7.56	1600	9.45	3000	5.04
2500	7.2	2000	9.00	3750	4.80
3000	6.85	2400	8.56	4500	4.57
3500	6.37	2800	7.96	5250	4.25
3800	6.08	3040	7.60	5700	4.05
4000	5.89	3200	7.36	6000	3.93

SPN	Motor/Driver	Description	Specifications
SPN04042-27	Motor #2 Driver #B	Standard BOR Drive Motor #2	Speed max 3000 rpm @ 220V; Max Torque 10.5 Nm
SPN04042-26	Motor #2 Driver #B	Standard BOR Drive Motor #2	Speed max 5000 rpm @ 220V; Max Torque 6.9 Nm
SPN04043-468	Motor #2 Driver #B	BOR Drive Motor #2 With Inline Torque Sensor	Speed max 3000 rpm @ 220V; Max Torque 10.5 Nm
SPN04043-402	Motor #2 Driver #B	BOR Drive Motor #2 With Inline Torque Sensor	Speed max 5000 rpm @ 220V; Max Torque 6.9 Nm
SPN04003-5-1	High Power Motor	Ultra-High Torque BOR Drive. Requires 3-phase 480V or 380V AC. Additional high power controller needed. Not all chambers fit. Please contact for compatibility.	Speed 0.1 to 5,000 rpm; Max Torque 30 Nm
SPN04003-5-2	High Power Motor	Ultra-High Torque BOR Drive. Requires 3-phase 480V or 380V AC. Additional high power controller needed. Not all chambers fit. Please contact for compatibility.	Speed 0.1 to 3,000 rpm; Max Torque 50 Nm

All Modules and Options Specifications

Accessories and external Company Specifications

BOR Brand Technical Specification and custom sample

TIMKEN Roller Specification

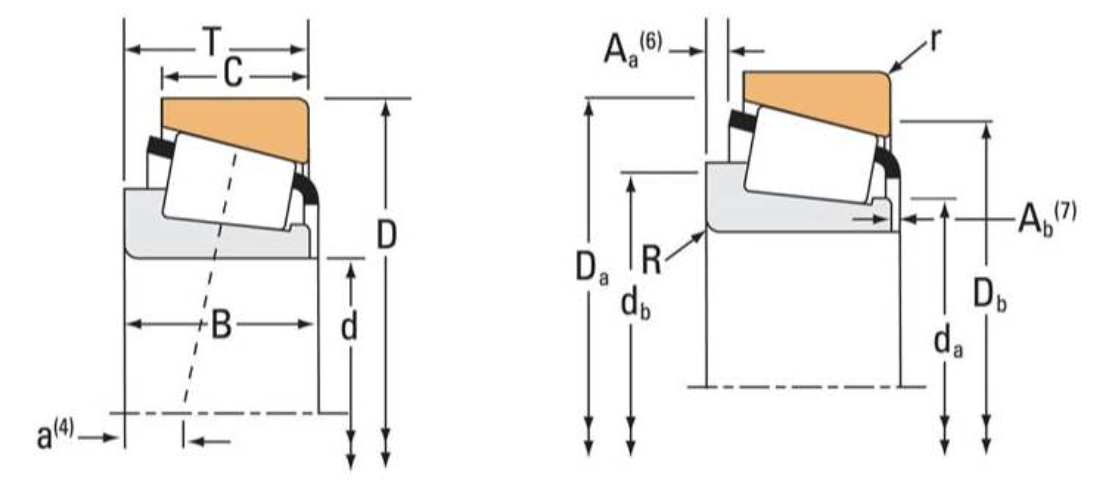

Parameter	Value (Imperial)	Value (Metric)
Specifications	ㅤ	ㅤ

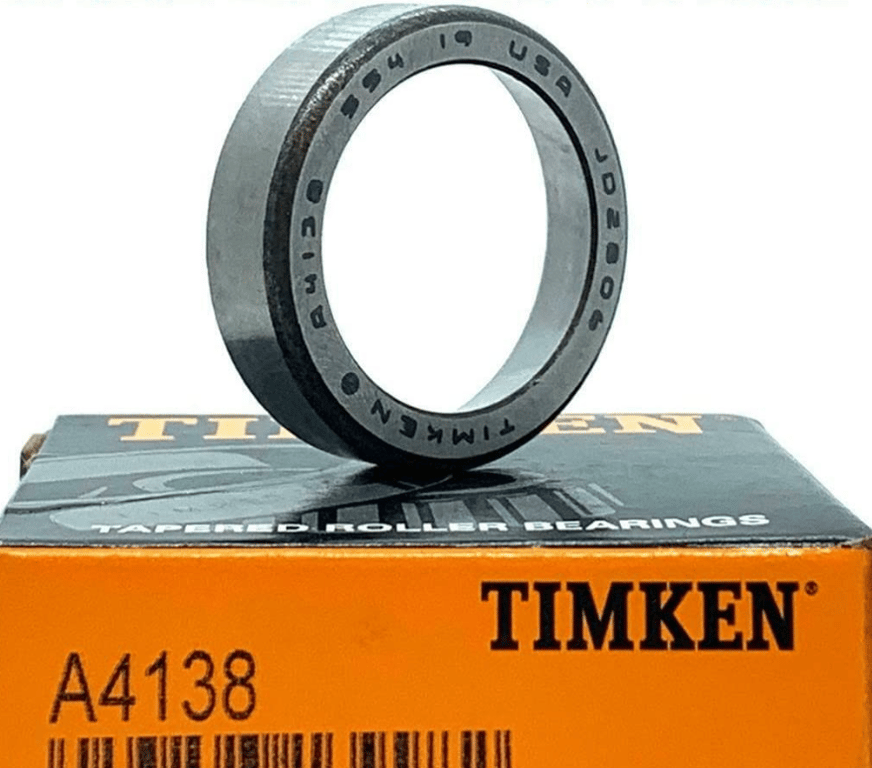

Series	A4000	—
Cup Part Number	A4138	—
Design Units	Imperial	—
Dimensions	ㅤ	ㅤ
D - Cup Outer Diameter	1.3775 in	34.989 mm
C - Cup Width	0.3437 in	8.730 mm
Abutment and Fillet Dimensions	ㅤ	ㅤ
r - Cup Backface "To Clear" Radius¹	0.050 in	1.27 mm
Da - Cup Frontface Backing Diameter	1.28 in	32.51 mm
Db - Cup Backface Backing Diameter	1.14 in	28.96 mm
Factors	ㅤ	ㅤ
e - ISO Factor²	0.45	—
Y - ISO Factor³	1.32	—
Cg - Geometry Factor⁴	0.0355	—

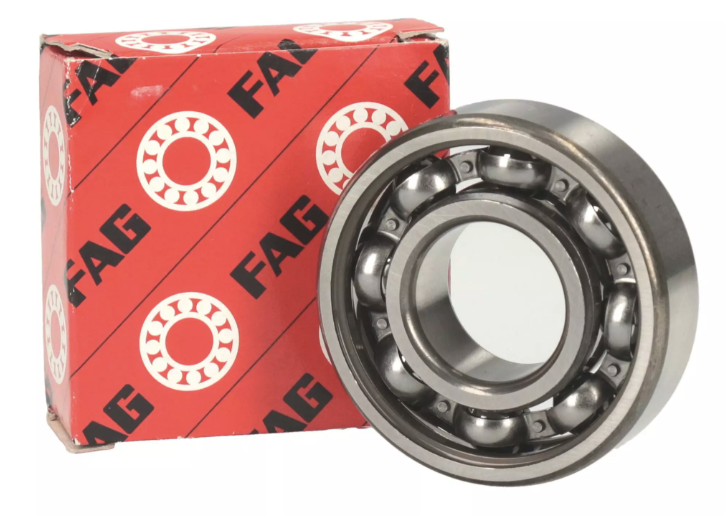

FAG Bearing Wheels Specification

Property	Specification	Notes / Source
Bearing type	Deep groove ball bearing	Standard single-row radial bearing
Model designation	6206-C3	“C3” = greater internal clearance
Bore (inner Ø)	30 mm	—
Outer Ø	62 mm	—
Width	16 mm	—
Dynamic load rating (Cᵣ)	≈ 20,700 N	abf.store
Static load rating (C₀ᵣ)	≈ 11,300 N	abf.store
Limiting speed (open)	≈ 16,200 rpm	abf.store
Reference speed	≈ 12,000 rpm	abf.store
Internal clearance	C3 = greater than normal	For high-speed or thermal expansion conditions
Seal type	Open (no suffix)	2Z = metal shields / 2RS = rubber seals if specified
Design generation	Generation C	Lower friction, improved noise & vibration
Contact angle	0° (radial contact)	Typical for deep groove type
Temperature range	−30 °C to +120 °C (typical)	Depends on grease/lubrication
Material	Through-hardened chromium steel	FAG standard
Manufacturer	Schaeffler / FAG (Germany)	—
